SURYA ILLUMINAZIONE - Product RangeClick images to view details

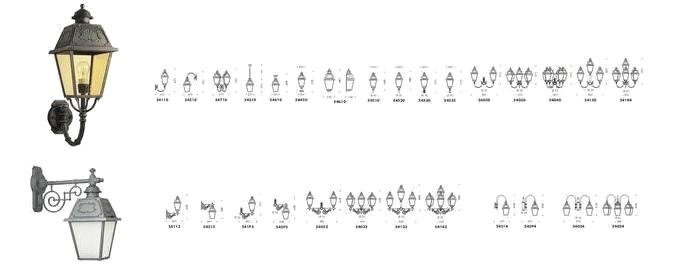

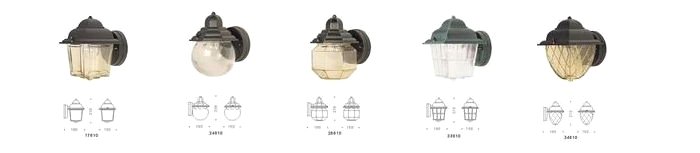

MINI
Smallest wall lanterns of the collection |
 |

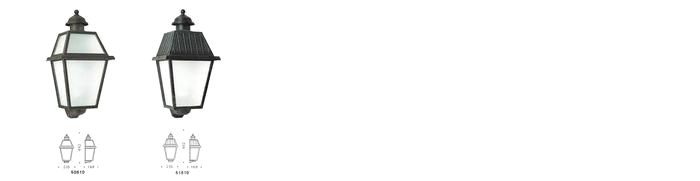

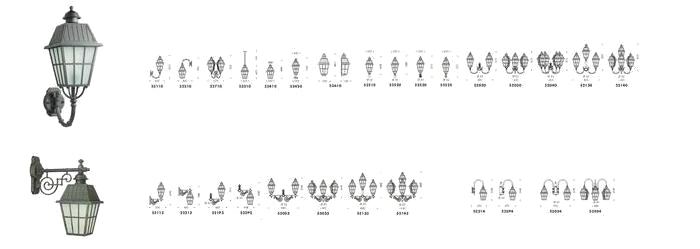

MEDIE WALL
|
 |

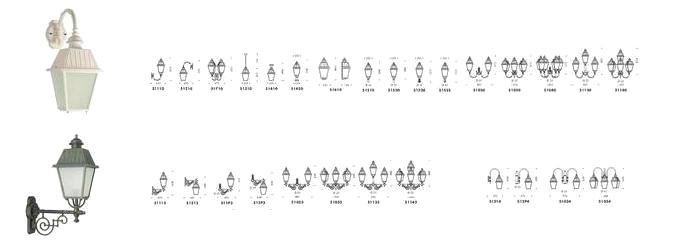

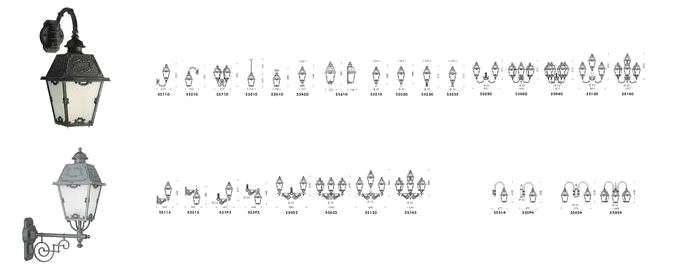

MEDIE

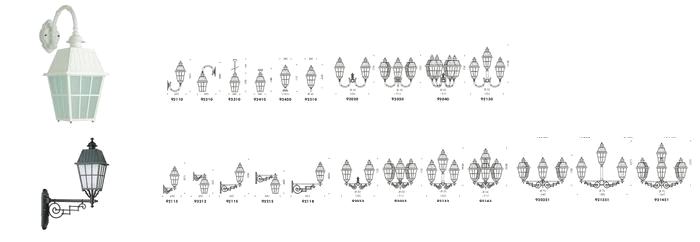

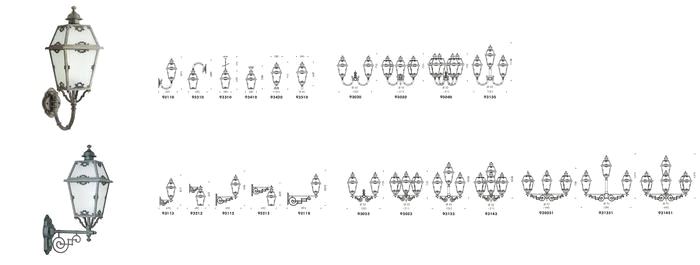

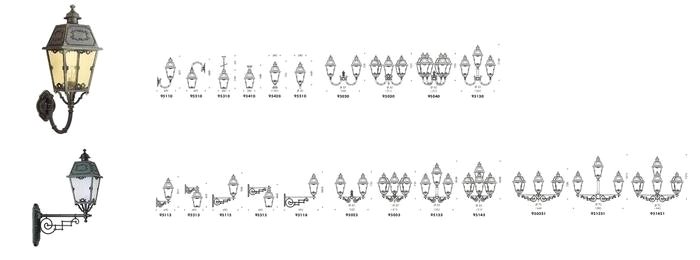

Medium size lanterns for wall, hanging, ceiling, ground and post installation |
|

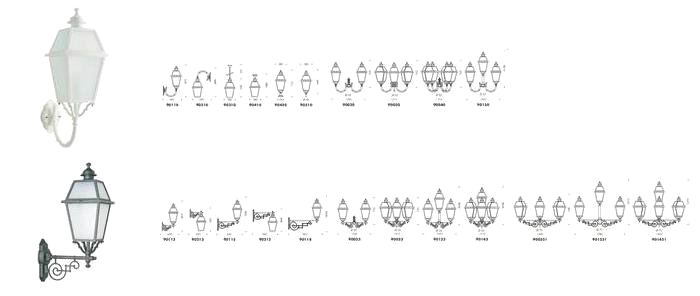

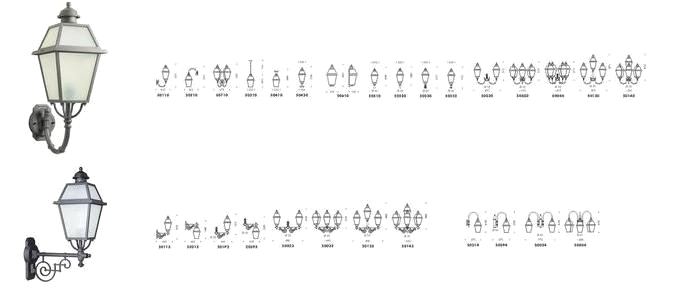

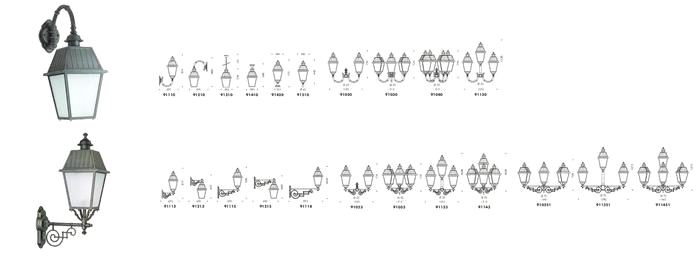

GRANDI

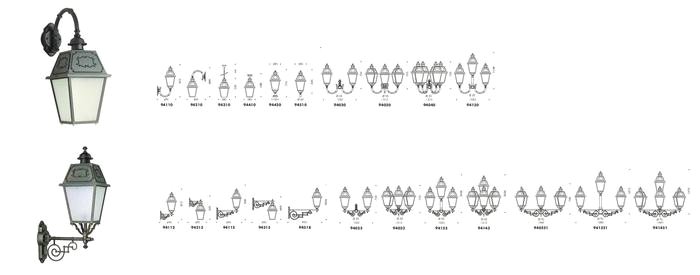

Large size lanterns for wall, hanging, ceiling, ground and post installation |
|

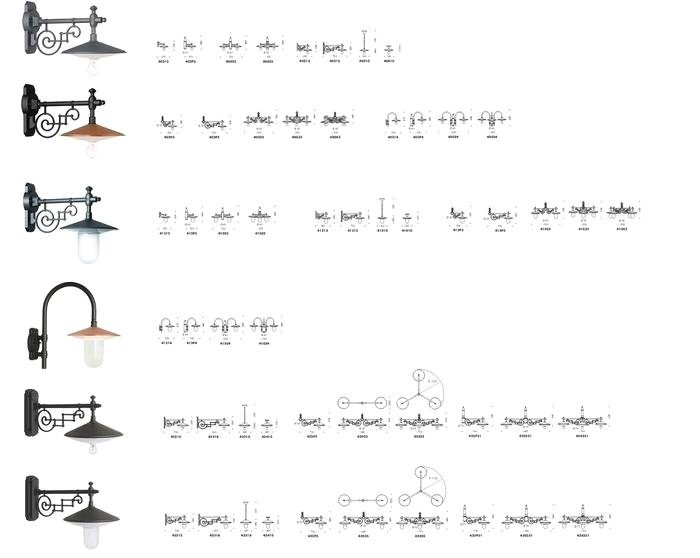

PLATES
Medium size lanterns of plate like design for wall, hanging, ceiling and post installation |
 |

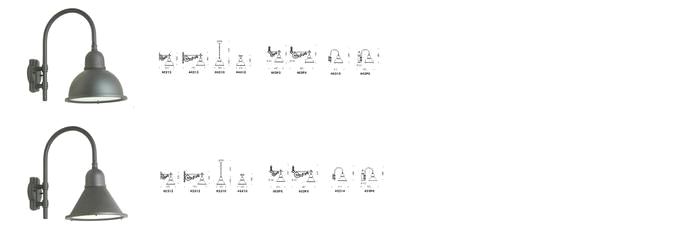

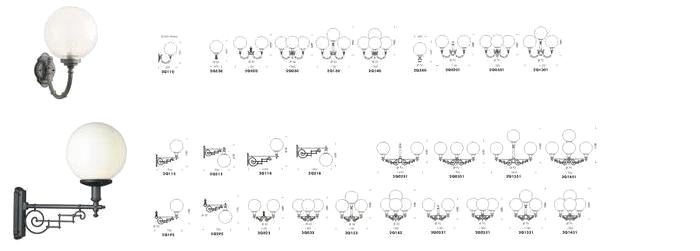

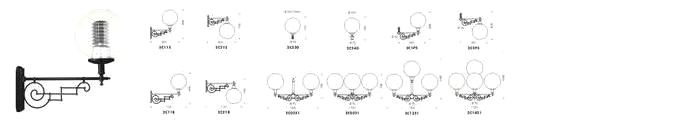

EMISPHERA

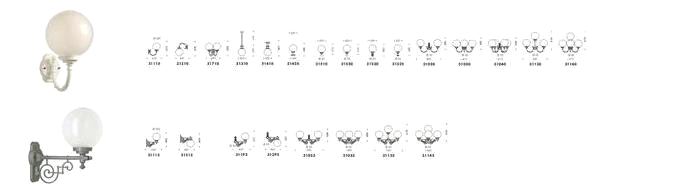

Medium size lanterns |
 |
PALI - POSTS
|

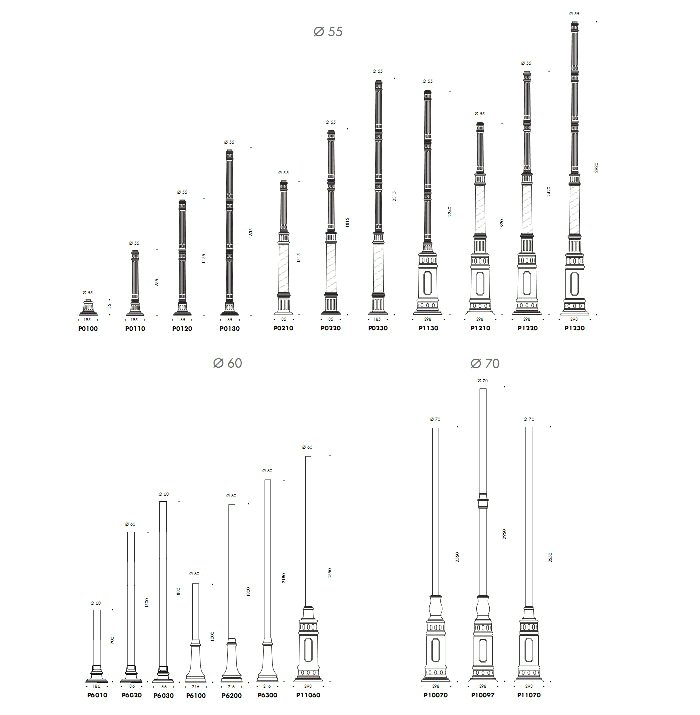

POSTS
Piccole, Medie, Grandi, Emisphera and Plates series lanterns may be used to create posts of different size and design with height range of 170-5500mm (excluding lantern). For ease of design and ordering, there are ready posts coded by Pxxxxx. Illustrations in the POSTS section show a list with sample lanterns and item codes below.
Posts and lanterns are paired by fixing diameter. When selecting a post, first select the lantern model. Post fitting diameter of each lantern indicated below its drawing (d40, d50, d55, d60, d70). Then, in the POSTS section, select the post group by your fitting diameter and choose the post. If you can not find the post desired, you may design your own. Max.recommended height of a post with the lantern is 7m, higher then that will be unstable in severe weather conditions.
Post fitting diameter: The fixing diameter of lantern to the post. It is indicated at the top of the post drawings. |

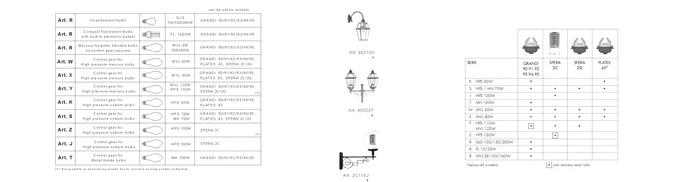

LIGHT SOURCES
Lamp socket selections
|
LAMPS
The standart lamp socket is E27 for all lanterns. Grandi and some models of Plates series may be fitted with special lamp sockets and ballasts.
Special socket list and details may be found in ”Light Sources“ section.
Socket articles (W, X, Y ,S, J,...) are added at the end of the lantern code, i.e. 90023T, 90210X in the order.
|
|
